Method for making colored asphalt pavement

The raw material fo colord asphalt

The raw material and processing is similar to to traditional black bitumen. The main raw material for colored asphalt are including : crushed stone, asphalt pigment powder and decolorized asphalt oil.

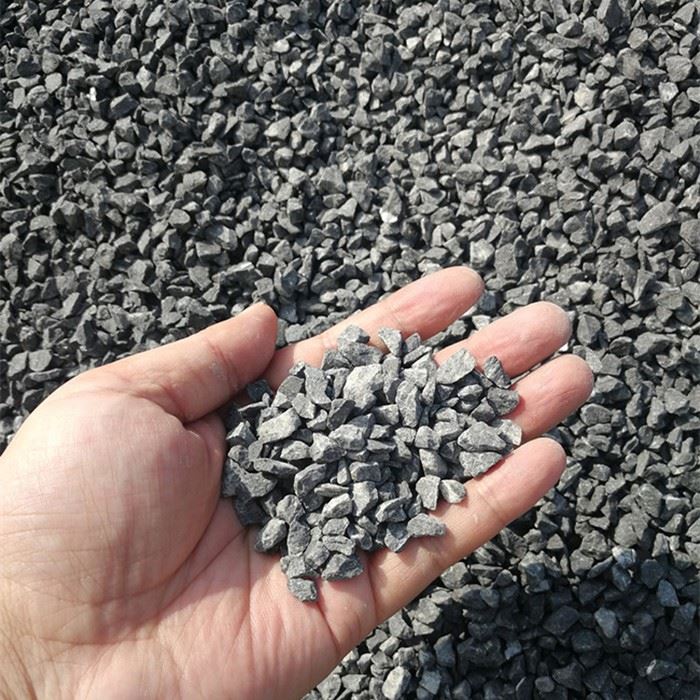

Crushed Stone

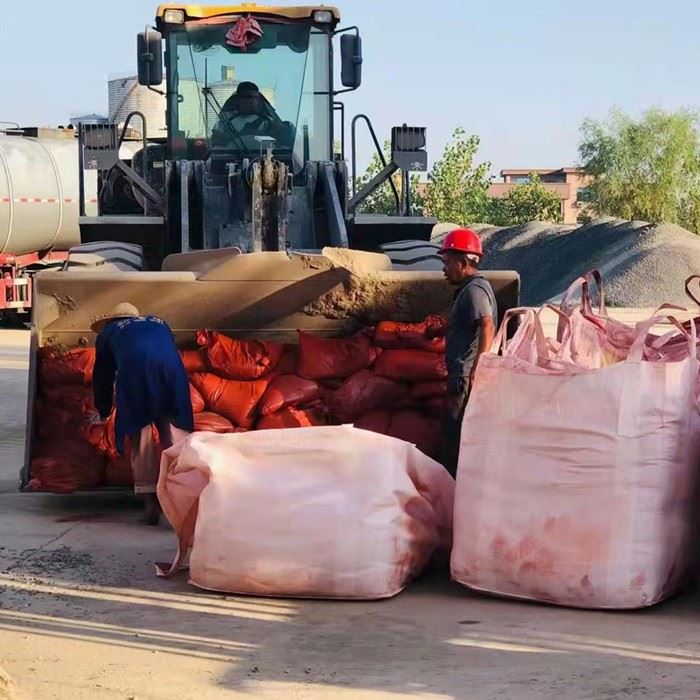

Asphalt Pigment Powder

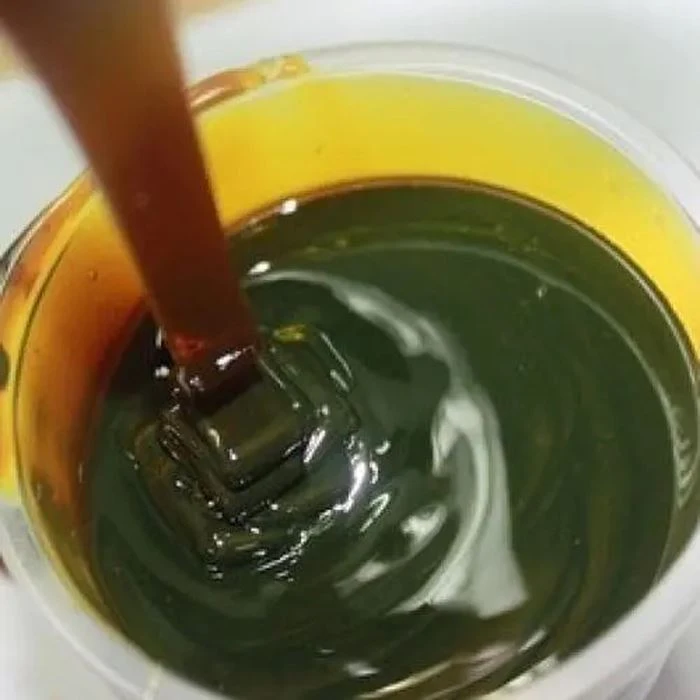

Decolorized Asphalt Oil

Samples From The Lab

The difference between colored asphalt and black bitumen

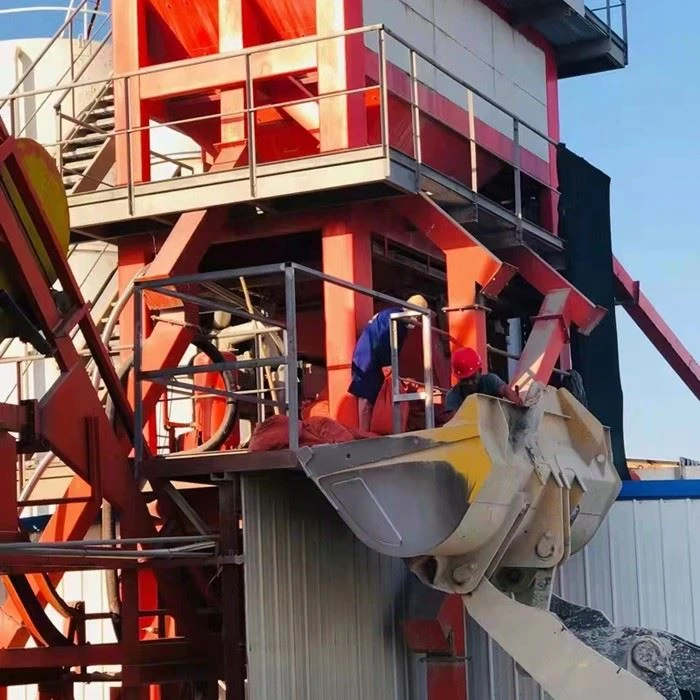

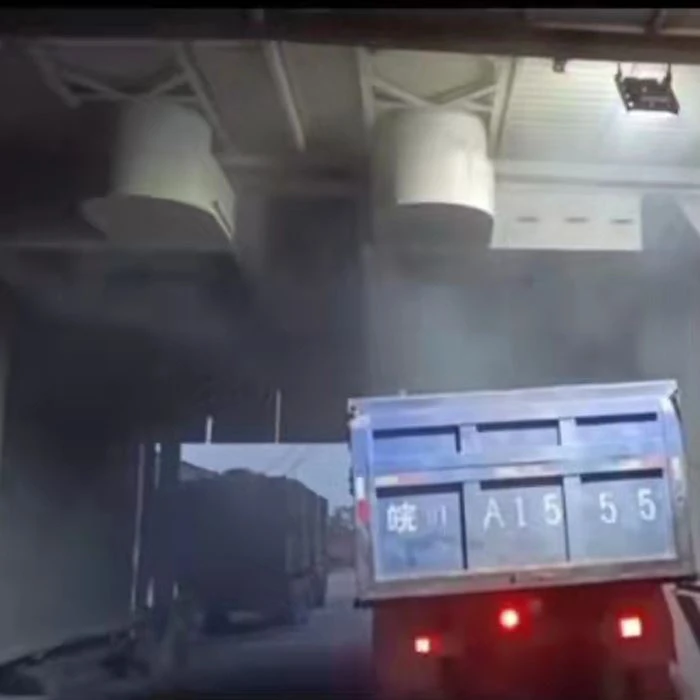

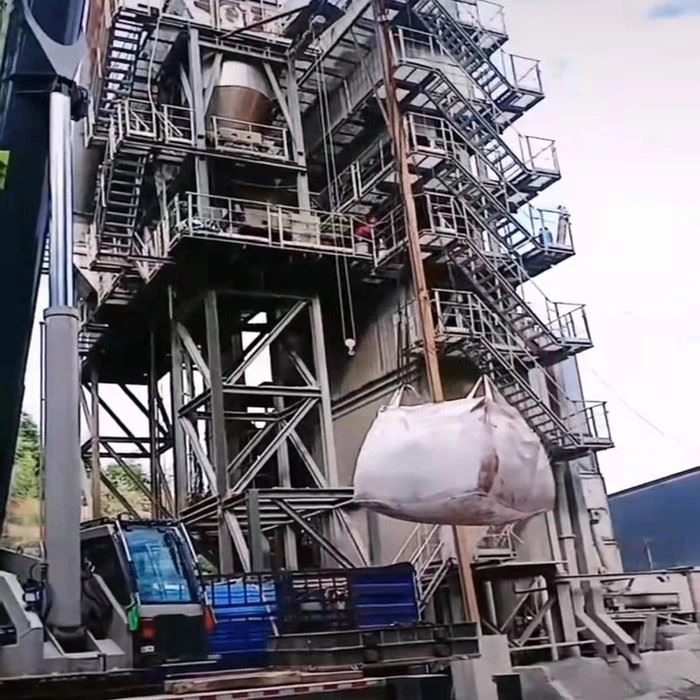

The process and the facility is very similar with the black bitumen.

A:The difference is about the temperature, different color, the temperature will be different.

B: At meanwhile we will use the colored pigment powder to replace the mineral powder.

C: We will use the decolorized asphalt oil instead of the black bitumen.

Color asphalt production process

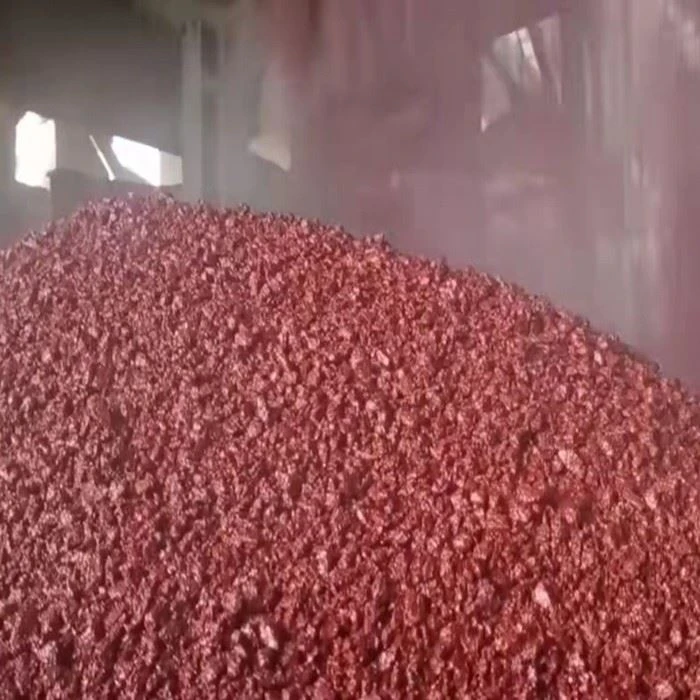

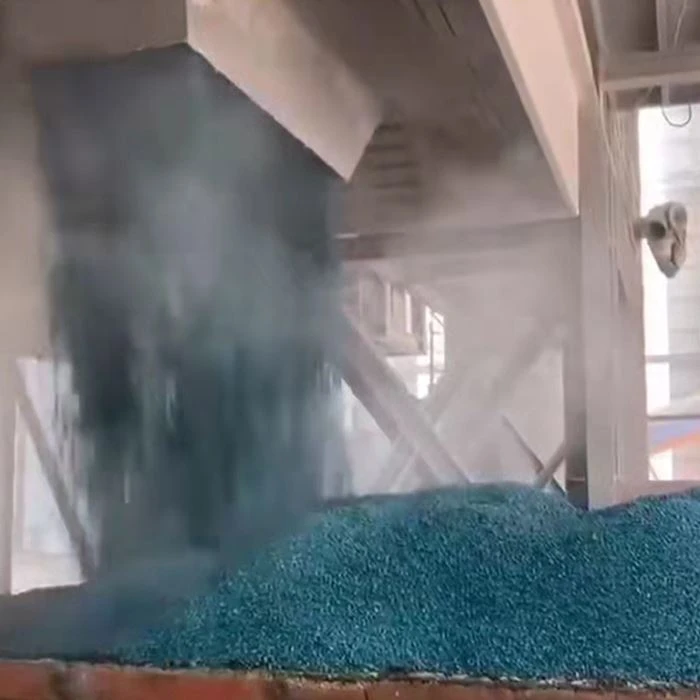

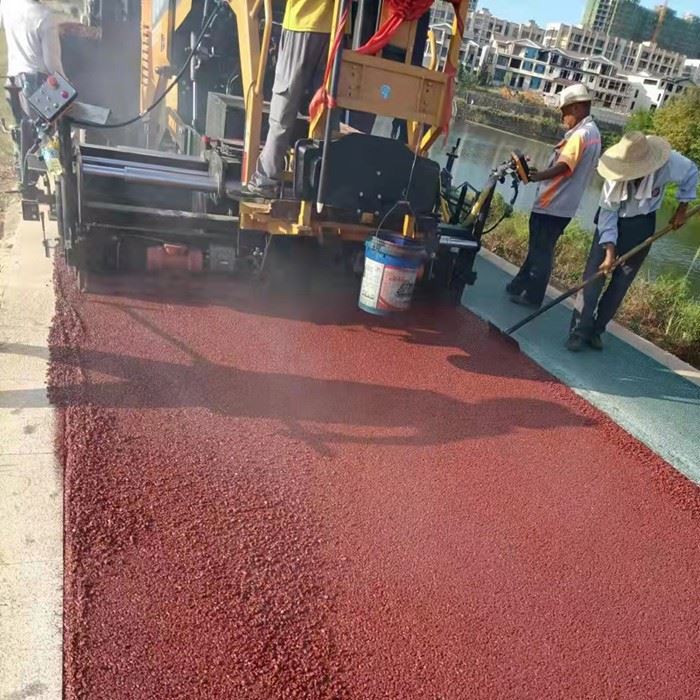

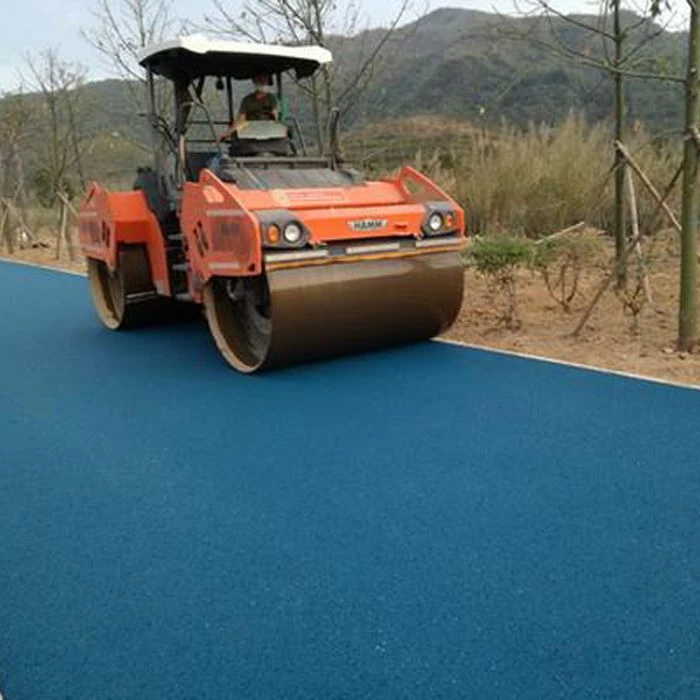

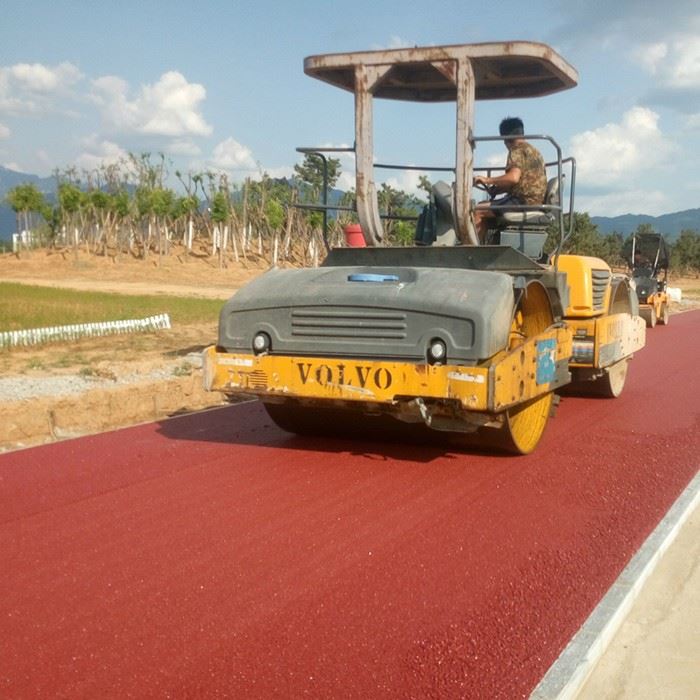

Heat a fixed amount of crushed stone to target temperature（such us: 130-150℃ for blue asphalt）, add 3% of pigment powder and 5% of discolored asphalt oil in proportion, stir evenly, maintain the temperature in 130-150℃ in the mixing process, and then spread and compacted.

Pigment Name	Area (㎡)	Thickness (cm)	Crushed Stone Density (t/m³)	Crushed Stone Weight (Ton)	Material Addition ratio	Material Weight (Ton)	Temperature Range （℃）
Asphalt Pigment Red	1000	5	2.35	117.5	2.50%	2.94	140-170
Asphalt Pigment Yellow	1000	5	2.35	117.5	3.00%	3.53	130-150
Asphalt Pigment Green	1000	5	2.35	117.5	3.00%	3.53	130-150
Asphalt Pigment Blue	1000	5	2.35	117.5	3.00%	3.53	130-150
Asphalt Pigment Gray	1000	5	2.35	117.5	2.50%	2.94	130-150
Asphalt Pigment Orange	1000	5	2.35	117.5	2.50%	2.94	130-150
Discolored Asphalt	1000	5	2.35	117.5	5.00%	5.88	130-150
